Mutongi weBias weUltra Compact IQ Modulator Automatic Bias Controller
Chinhu
•Inopa rusaruro rutatu kune vanogadzirisa IQ. Maitiro ekushandura akazvimiririra:
•QPSK, QAM, OFDM, SSB yakasimbiswa
•Bata uye Tamba:
Hapana kudiwa kwekugadzirisa nemaoko Zvese zviri otomatiki
•I, Q arms: controll on Peak and Null modes High extinction ratio: 50dB max1
•P arm: controll paQ+ neQ- modes Kururama: ± 2◦
•Profile yakaderera: 40mm(W) × 28mm(D) × 8mm(H)
•Kugadzikana kwakanyanya: kushandiswa kwedhijitari zvizere Zviri nyore kushandisa:
•Kushanda nemaoko ne mini jumper Kushanda kweOEM inochinjika kuburikidza neUART2
•Maitiro maviri ekupa mavoltage ekubiridzira: a.Kudzora Bias otomatiki b.Voltage yekubiridzira yakatsanangurwa nemushandisi
Kushandiswa
•LiNbO3 nedzimwe IQmodulators
•QPSK, QAM, OFDM, SSB nezvimwewo
•Kutumira Kwakabatana
Kushanda

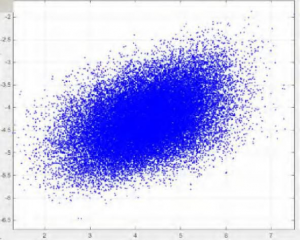

Mufananidzo 1. Nyeredzi (isina controller)
Mufananidzo 2. QPSK Constellation (ine controller)
Mufananidzo 3. QPSK-Eye pattern
Mufananidzo 5. Patani yeboka renyeredzi re16-QAM
Mufananidzo 4. QPSK Spectrum
Mufananidzo 6. 16-QAM Spectrum
Magadzirirwo
| Paramita | Minimum | Rudzi | Max | Chikamu |
| Kudzora Mashandiro | ||||
| Maoko eI, Q anodzorwa paHazvina basa (Zvishoma) kanaNhamba yepamusoro (Yakanyanya) poindi | ||||
| Chiyero chekutsakatika | MER1 | 50 | dB | |
| Ruoko rweP runodzorwa paMubvunzo+(kurudyi) chikamu chimwe chete) kanaQ-( ruboshwe chikamu chimwe chete) poindi | ||||
| Kururama paQuad | −2 | +2 | dhigirii2 | |
| Nguva yekudzikamisa | 15 | 20 | 25 | s |
| Zvemagetsi | ||||
| Simba rakanaka remagetsi | +14.5 | +15 | +15.5 | V |
| Simba rakanaka remagetsi | 20 | 30 | mA | |
| Simba remagetsi risina kunaka | -15.5 | -15 | -14.5 | V |
| Simba rakaipa razvino | 8 | 15 | mA | |
| Kubuda kwemagetsi emagetsi | -14.5 | +14.5 | V | |
| Kukura kweDither | 1%Vπ | V | ||
| Optical | ||||
| Simba rekuisa remagetsi3 | -30 | -8 | dBm | |
| Kupinza wavelength | 1100 | 1650 | nm | |
1. MER inoreva Modulator Extinction Ratio. Chiyero chekupera kwesimba chinowanikwa chinowanzova chiyero chekupera kwesimba chemodulator chakatsanangurwa mu datasheet re modulator.
2. Ndapota zivai kuti simba rekuisa optical harienderane nesimba re optical panzvimbo yakasarudzwa ye bias. Rinoreva simba guru re optical iro modulator inogona kutumira kune controller kana bias voltage iri kubva ku −Vπ kusvika ku +Vπ.
Mushandisi Wekushandisa
Mufananidzo 5. Kuungana
| Boka | Kushanda | Tsananguro |
| Gadzirisa patsva | Isa jumper wobva waiburitsa mushure mesekondi imwe chete | Dzorerazve controller |
| Simba | Simba rekutonga bias | V- inobatanidza electrode isina kunaka yemagetsi |
| V+ inobatanidza electrode yakanaka yemagetsi | ||
| Chiteshi chepakati chinobatanidza ne electrode yepasi | ||
| Polar1 | PLRI: Isa kana dhonza jumper | hapana jumper: Hapana chinhu; ine jumper: Peak mode |
| PLRQ: Isa kana dhonza jumper | hapana jumper: Hapana chinhu; ine jumper: Peak mode | |
| PLRP: Isa kana dhonza jumper | hapana jumper: Q+ mode; ine jumper: Q- mode | |
| LED | Nguva dzose dziripo | Kushanda pasi pemamiriro akagadzikana |
| Inobatidzwa kana kudzima masekondi ese e0.2 | Kugadzirisa data uye kutsvaga nzvimbo yekudzora | |
| Inobatidzwa kana kudzima masekondi ese ega ega | Simba rekushandisa remagetsi harina simba | |
| Inodzimwa kana kudzima masekondi matatu ega ega | Simba rekuisa remagetsi rakasimba zvakanyanya | |
| PD2 | Batanidza ne photodiode | Chiteshi chePD chinobatanidza Cathode ye photodiode |
| GND port inobatanidza Anode ye photodiode | ||
| Mavhiringi eBias | Mukati, Ip: Bias voltage yeI ruoko | Ip: Rutivi rwakanaka; Mu: Rutivi rwakashata kana pasi |
| Qn, Qp: Voltage yekubiridzira yeQ ruoko | Qp: Rutivi rwakanaka; Qn: Rutivi rwakashata kana pasi | |
| Pn, Pp: Voltage yeP ruoko ine bias | Pp: Rutivi rwakanaka; Pn: Rutivi rwakashata kana pasi | |
| UART | Shandisa controller kuburikidza neUART | 3.3: 3.3V referensi yemagetsi |
| GND: Pasi | ||
| RX: Kugamuchira kwemutongi | ||
| TX: Kutumirwa kwemutongi |
1 Polar inoenderana nechiratidzo cheRF chesystem. Kana pasina chiratidzo cheRF musystem, polar inofanira kunge yakanaka. Kana chiratidzo cheRF chine amplitude yakakura kupfuura imwe level, polar ichachinja kubva pane yakanaka kuenda kune negative. Panguva ino, Null point nePeak point zvichachinjana. Q+ point neQ- point zvichachinjana zvakare. Polar switch inobvumira mushandisi kuchinja polar
zvakananga pasina kuchinja nzvimbo dzekushanda.
2Sarudzo imwe chete ndiyo inofanira kusarudzwa pakati pekushandisa controller photodiode kana kushandisa modulator photodiode. Zvinokurudzirwa kushandisa controller photodiode pakuedza kweLab nekuda kwezvikonzero zviviri. Chekutanga, controller photodiode ine hunhu hwayo. Chechipiri, zviri nyore kugadzirisa simba rechiedza chinopinzwa. Kana uchishandisa photodiode yemukati memodulator, ndapota iva nechokwadi chekuti simba rekubuda kwephotodiode rinoenderana nesimba rinopinzwa.
Rofea Optoelectronics inopa mhando yezvigadzirwa zvema Electro-optic modulators ekutengesa, Phase modulators, Intensity modulator, Photodetectors, Laser light sources, DFB lasers, Optical amplifiers, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Balanced photodetector, Laser driver, Fiber optic amplifier, Optical power meter, Broadband laser, Tunable laser, Optical detector, Laser diode driver, Fiber amplifier. Tinopawo ma modulators akawanda ekugadzirisa, akadai se 1*4 array phase modulators, ultra-low Vpi, uye ultra-high extinction ratio modulators, anoshandiswa zvakanyanya mumayunivhesiti nemasangano.
Ndinovimba kuti zvigadzirwa zvedu zvichakubatsira iwe nekutsvaga kwako.
